Powered Forklift Full Electric Walkie Stacker – 3300lbs Capacity, Adjustable Straddle Legs, 98" Lifting Height

The Perfect Solution for Tight Spaces and Efficient Lifting

Maximize efficiency with this compact and powerful full-electric walkie stacker, designed for narrow sites and demanding material handling tasks. With a 3300lbs lifting capacity and adjustable straddle legs, this forklift is your go-to solution for versatile and reliable operations.

Key Features

  • Powerful Motor System: Equipped with a 650-watt drive motor and 2,200-watt lift motor for smooth and powerful performance.
  • Adjustable Forks: Fits most pallet sizes with a range of 7.8"–31.5".

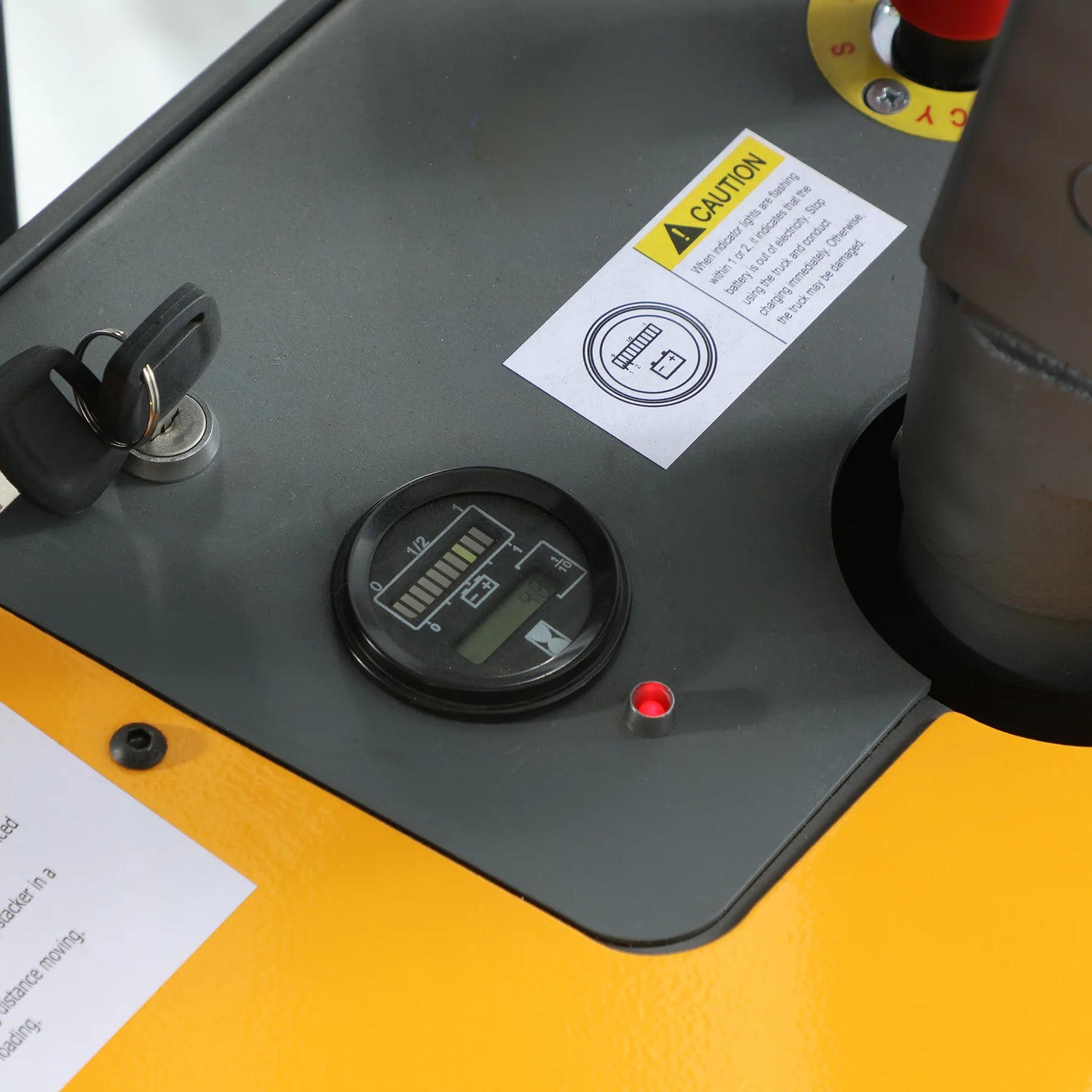

  • User-Friendly Display: Monitor working hours, battery levels, and low-voltage alerts at a glance.
  • Compact and Agile: A turning radius of just 52.9" ensures easy maneuverability in tight spaces.
  • Efficient and Durable Batteries: Maintenance-free GEL batteries deliver up to 6 hours of service per charge.

Performance and Safety

  • Smooth Steering: Polyurethane wheels and a 180° steering arc provide superior control.

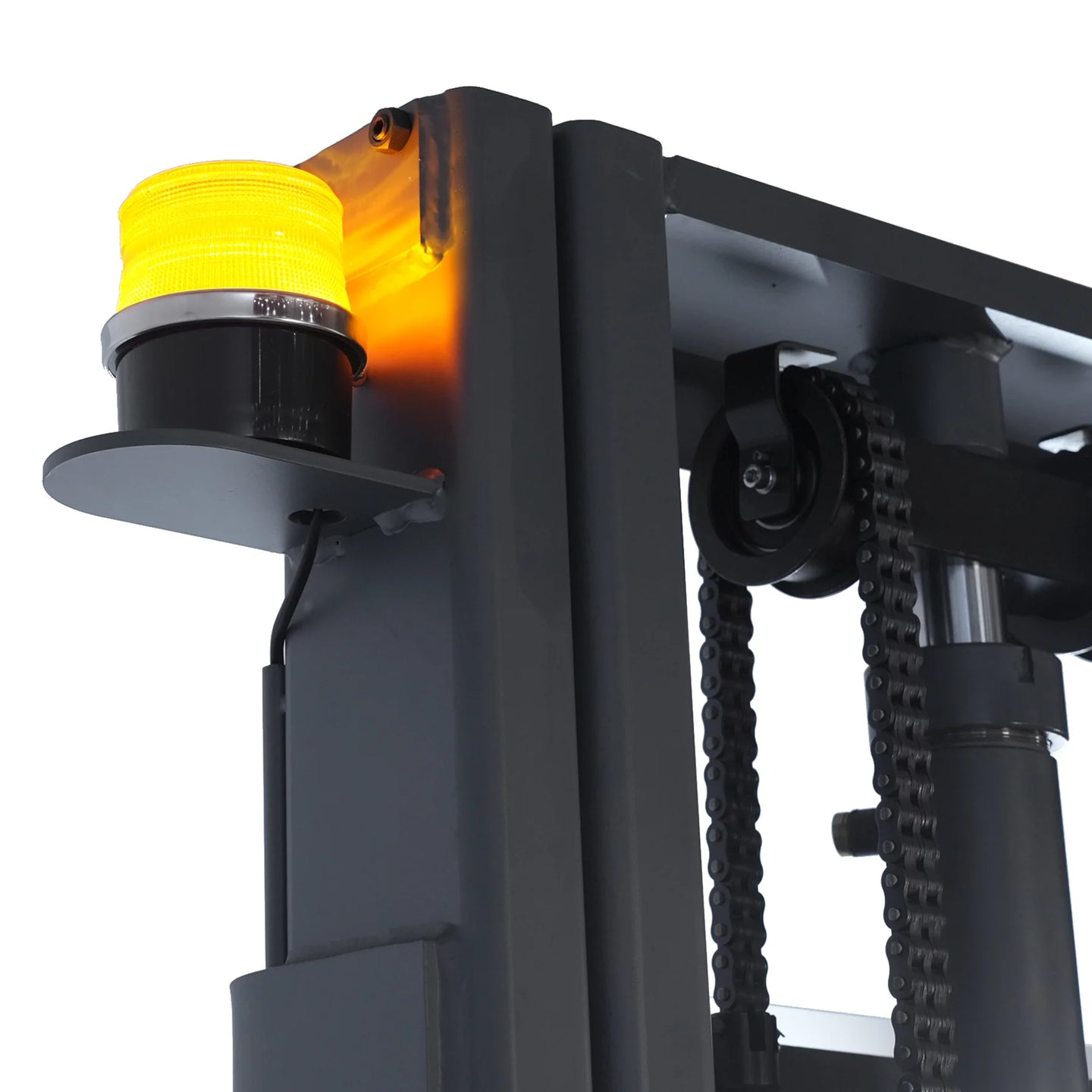

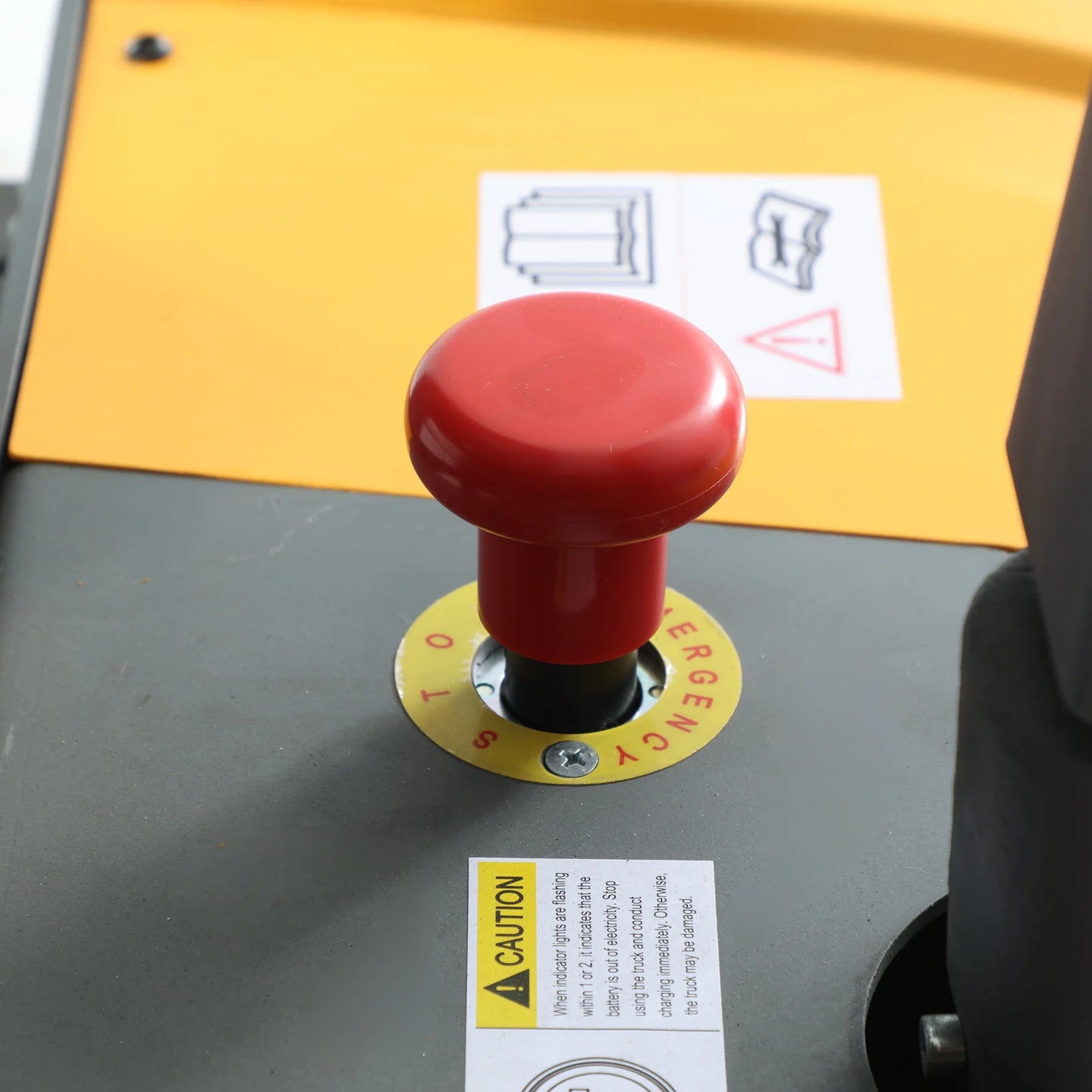

  • Safety Enhancements: Includes warning lights and a buzzer for safe operation.
  • Travel Speeds:
    • Laden/Unladen: 2.8/3.1 mph
    • Lifting Speed: 3.5/5.9 inch/s
    • Lowering Speed: 5.9/4.3 inch/s
  • Built-In Charger: Plugs into a standard 110V-120V outlet for hassle-free charging.

Operating Guidelines

  • Use on flat, even surfaces for optimal performance.
  • Not explosion-proof – avoid environments requiring explosion-proof equipment.
  • Suitable for temperatures between -13°F and +104°F.
  • Fully charge the battery before use and charge monthly when not in use to maintain battery health.

Why Choose This Walkie Stacker?

Compact, powerful, and easy to operate, this electric walkie stacker is perfect for warehouses, loading docks, and other tight spaces. Its user-friendly design and robust performance make it a reliable addition to any material handling operation.

  • Overall Length: 70.3"
  • Turning Radius: 52.9"
  • Recommended Aisle Width: 88.3"
  • Maximum Lifting Height: 98"
  • Mast Height (Lowered/Raised): 74.6" / 123.8"
  • Load Center: 23.6"
  • Ground Clearance: 2.56"

Fork and Straddle Leg Specifications

  • Forks:
    • Height (Lowered): 2.8"
    • Width: 3.9"
    • Length: 42"
    • Adjustable Range: 7.8"–31.5"
  • Straddle Legs:
    • Height: 4.7"
    • Adjustable Range: 44"–60"
