MRCOOL

MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28

SKU DIYM327HPW01C28
$4,199.00
$3,857.00
$4,199.00
$3,857.00

Why Choose Us?

At ShopHubDepot, your shopping experience is our top priority. We deeply value the trust you place in us when you choose to shop online. That's why we are committed to going above and beyond to ensure your satisfaction and happiness with every purchase.

Price Match

We strive to offer the best prices around! Found a lower price? We’ll beat it!

If you find an item cheaper elsewhere (including price, shipping, and taxes), email us at customersupport@shophubdepot.com or call us at 1-800-816-4939.

Please note:

  • We do not price match past orders, local stores, club or warehouse sales.
  • The item must be in stock.
  • We reserve the right to deny any price match that would incur a loss.

Shipping & Delivery

Free Shipping:
We offer free shipping on all items to the contiguous United States.

Order Shipment:
Items ship within 1-3 business days. Once your order ships, you will receive an email with tracking information, which may take 24-48 hours to update. Delivery is estimated to take 5-7 business days after shipping.

In the event that you purchase an item that is on the manufacturer's backorder or experiencing an inventory shortage beyond our control, one of our customer service representatives will contact you within 24 hours of placing your order.

View our full policy here.

MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28
MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28 MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28

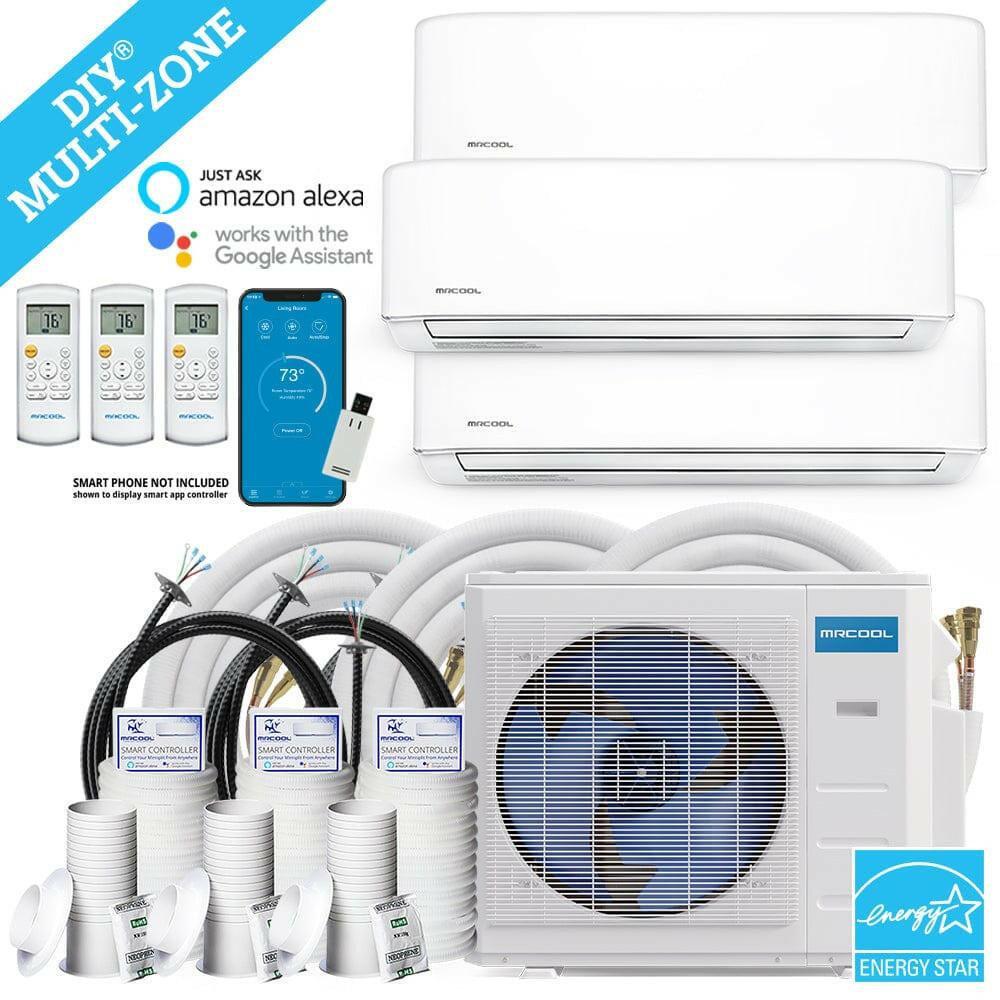

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms.

 You'll be sent: DIY 27,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, 12,000 BTU Wall Mounted Air Handler, three Remotes, and three 25 ft. Installation Kits.

The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

See Features Below:


➯ Condenser:

• Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.

•Works In All Environments. The ability to heat even when temperatures drop to -13°F.

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

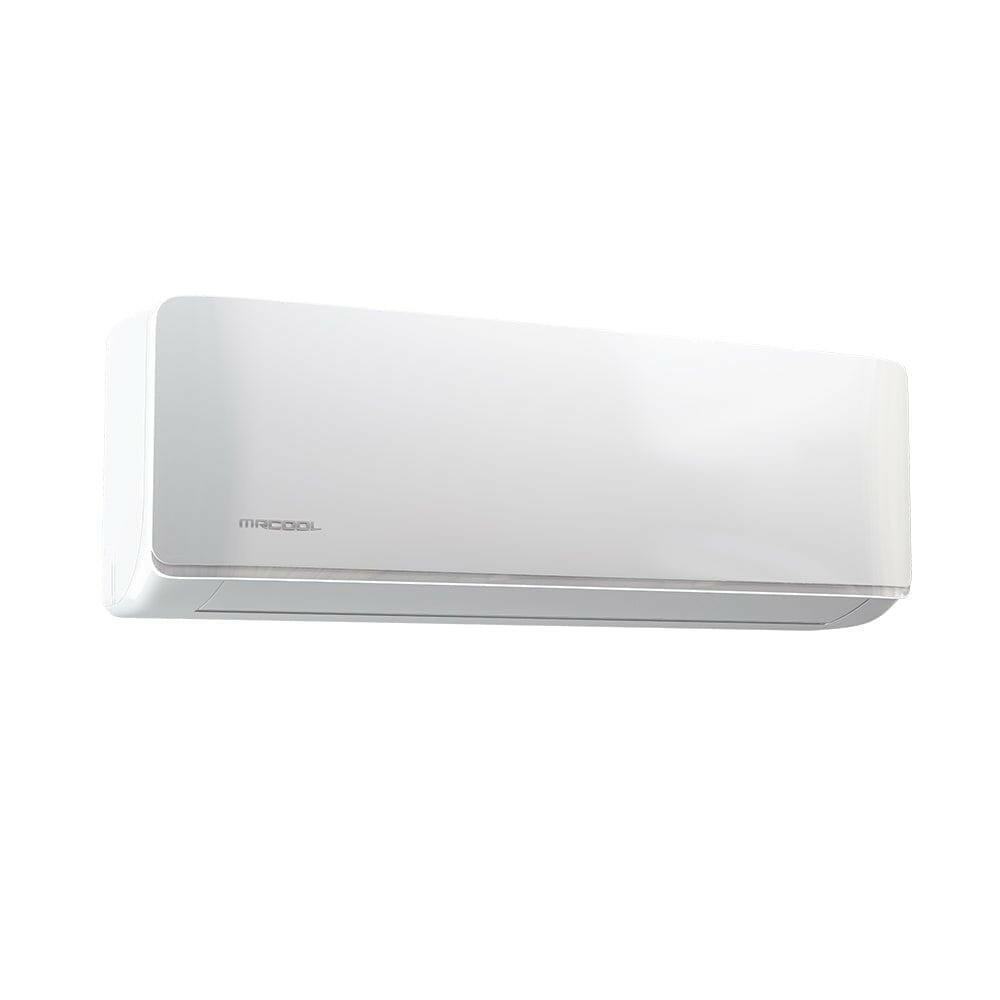

    ➯Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.

    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

     • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    ➯Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.

    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

     • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

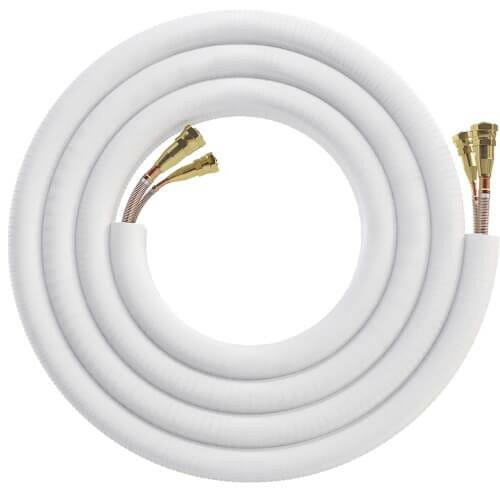

      ➯ Line Set 25 ft., Quantity 3

      • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

      • Additional Line Sets & Coupler If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

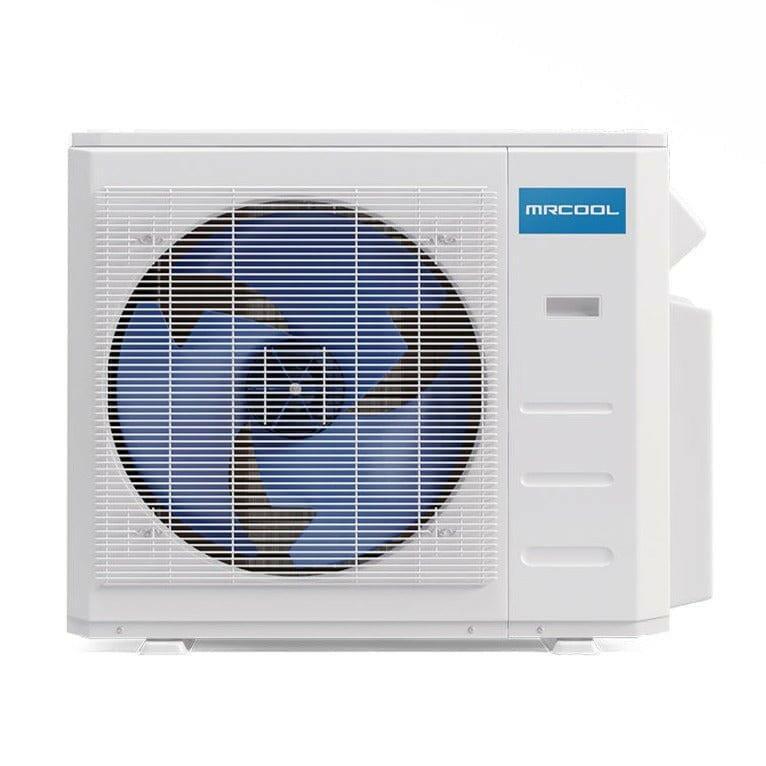

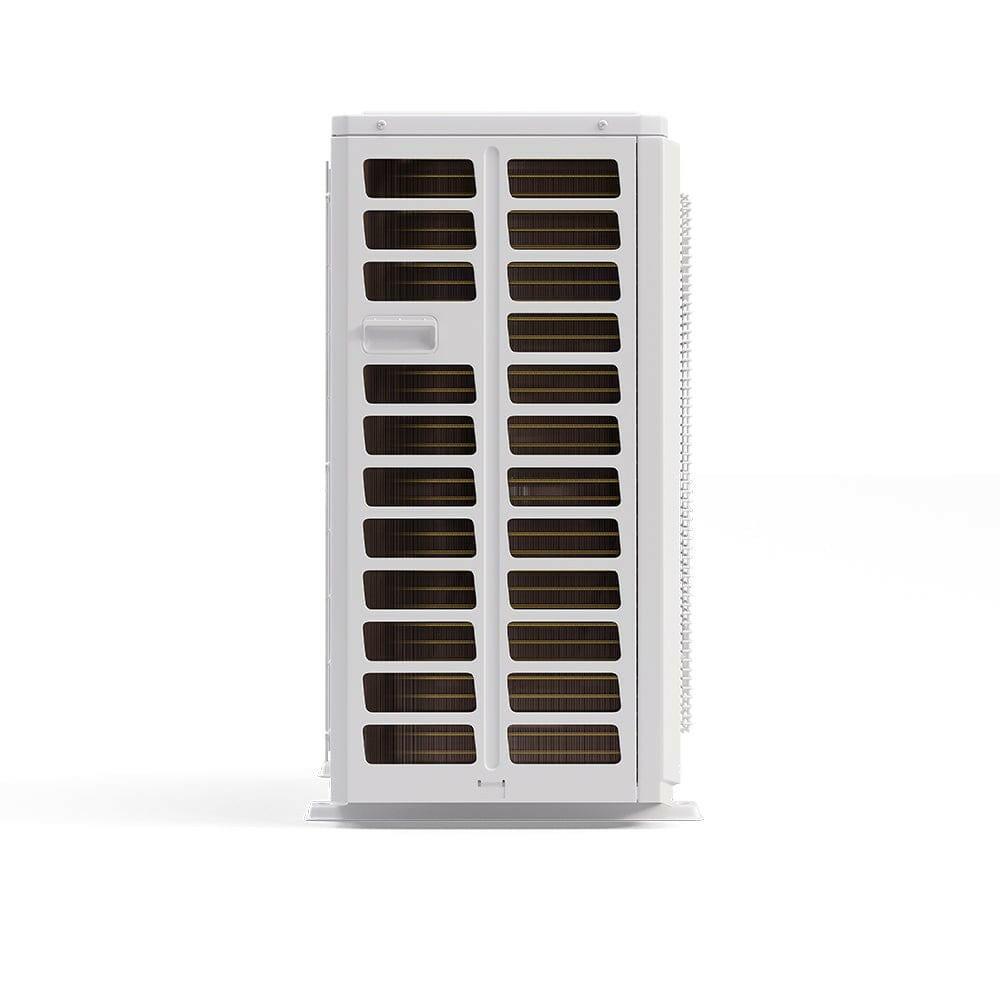

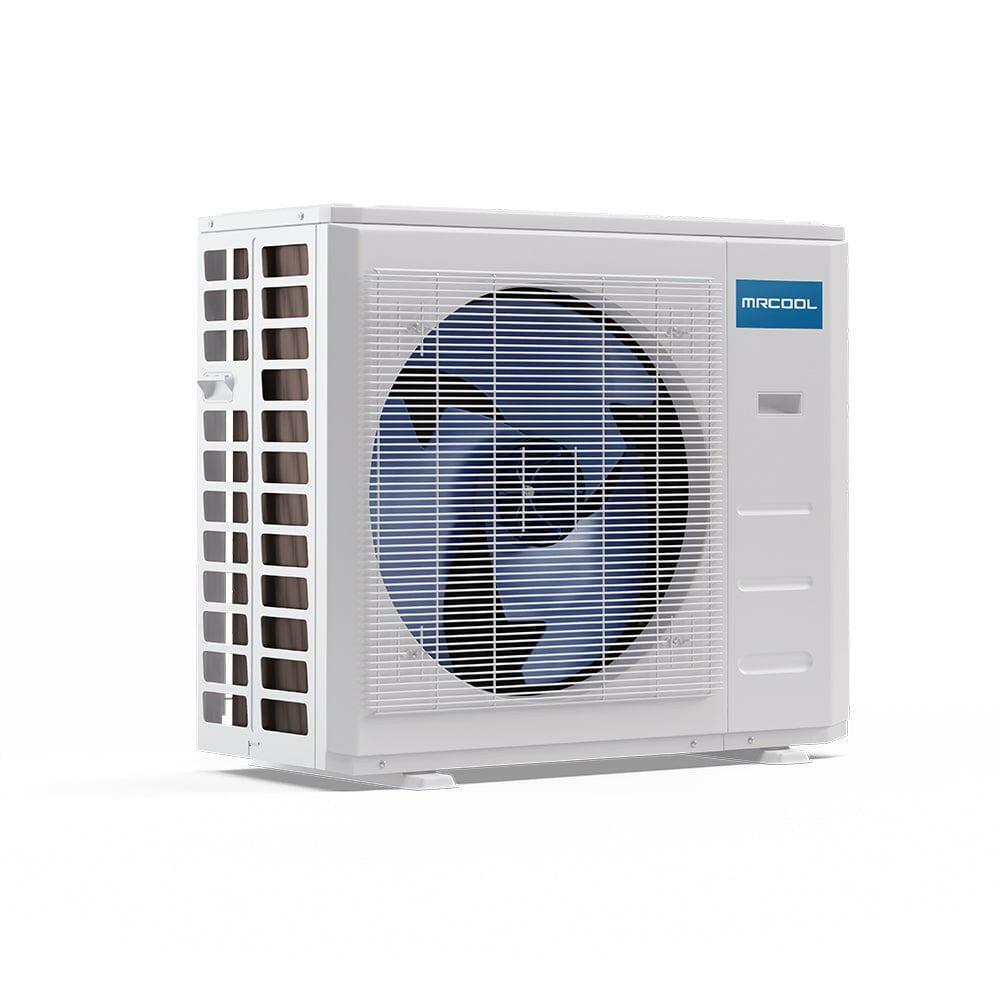

          Condenser
          Product Dimensions 37.24"W x 16.14"D   x 31.89"H
          Cooling Capacity 27,000 BTU
          Heating Capacity 27,000 BTU
          Zone Capacity 3
          Min Ambient Cool 5F ~ 122F
          Min Ambient Heat -13F ~ 75.2F
          SEER 22
          EER 12
          Voltage Requires a minimum of 208V-230V/60HZ/26-40A   (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Condenser, 5 Years   Parts
          Air Handler 9K BTU
          Product Dimensions 31.57"W x 7.44"D   x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Registered Warranty 5   Years Parts
          Modes Auto - auto selects from Cool, Heat or   Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep
          Air Handler 12K BTU
          Product Dimensions 31.57"W   x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 12,000 BTU
          Heating Capacity 12,000 BTU
          Registered Warranty 5   Years Parts
          Modes Auto - auto selects from Cool, Heat or   Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep
          Line Set
          Length 25 Feet
          Liquid Line Size 1/4"
          Suction Line Size 1/2"



          ➯ MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series, DIY-MULTI3-27HP230C

          ➯ MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)

          ➯ MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25

          ➯ MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x3)

          If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 27K BTU rating of the Condenser.

          ➯ Installation Manual

          ➯ Product Brochure
