MRCOOL DIY 36K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-36-HP-WM-230C25

The MRCOOL 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series.

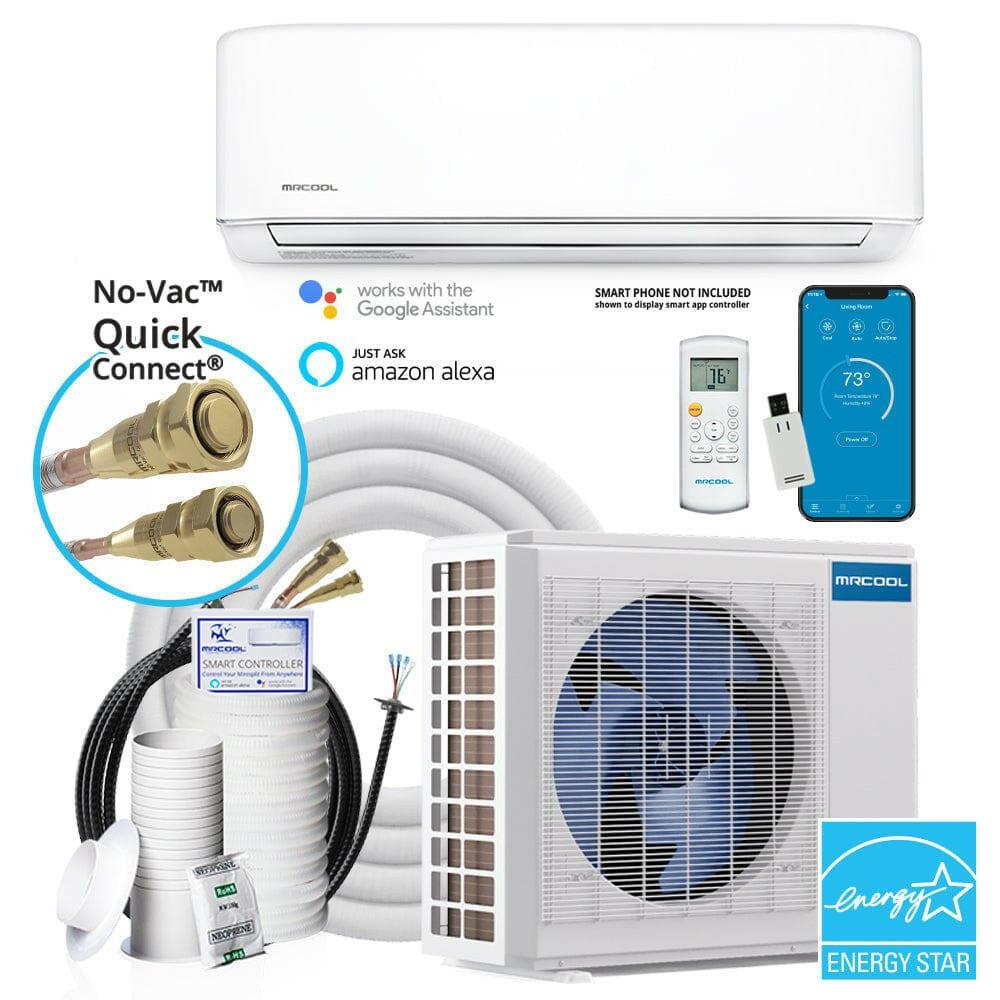

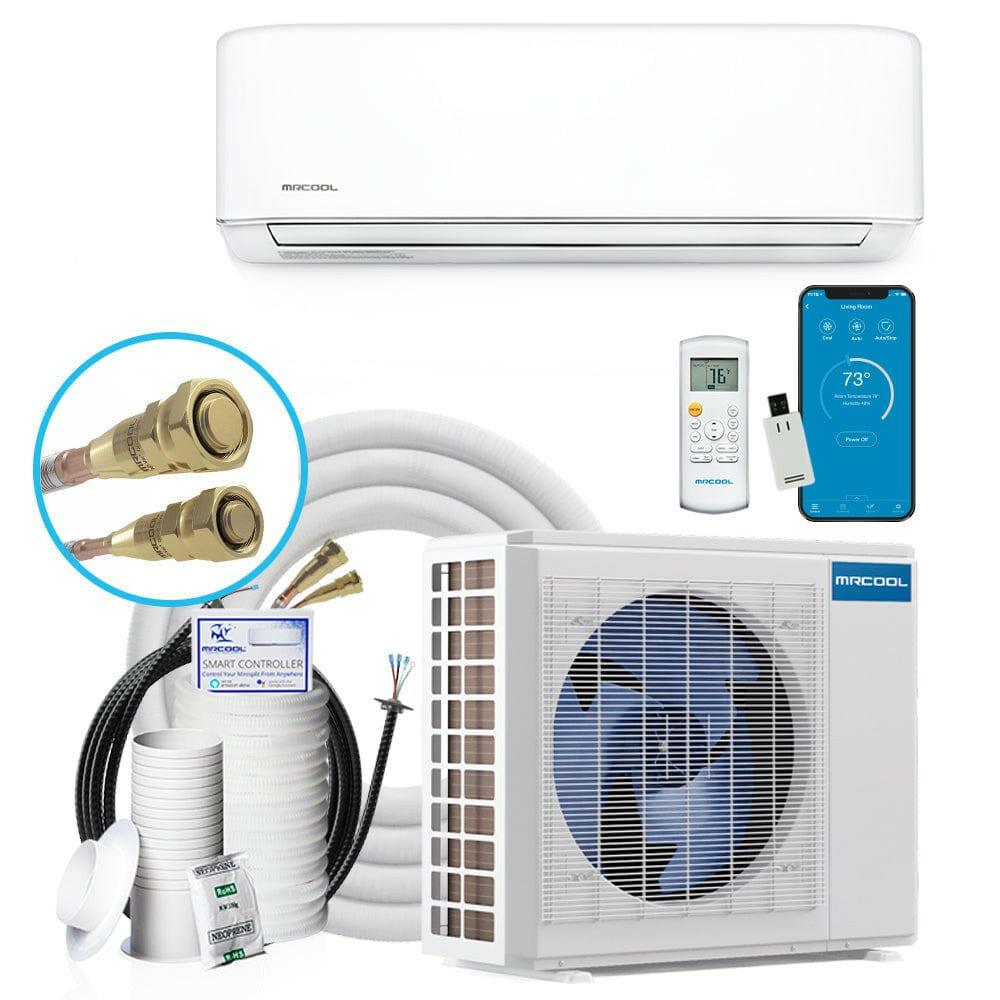

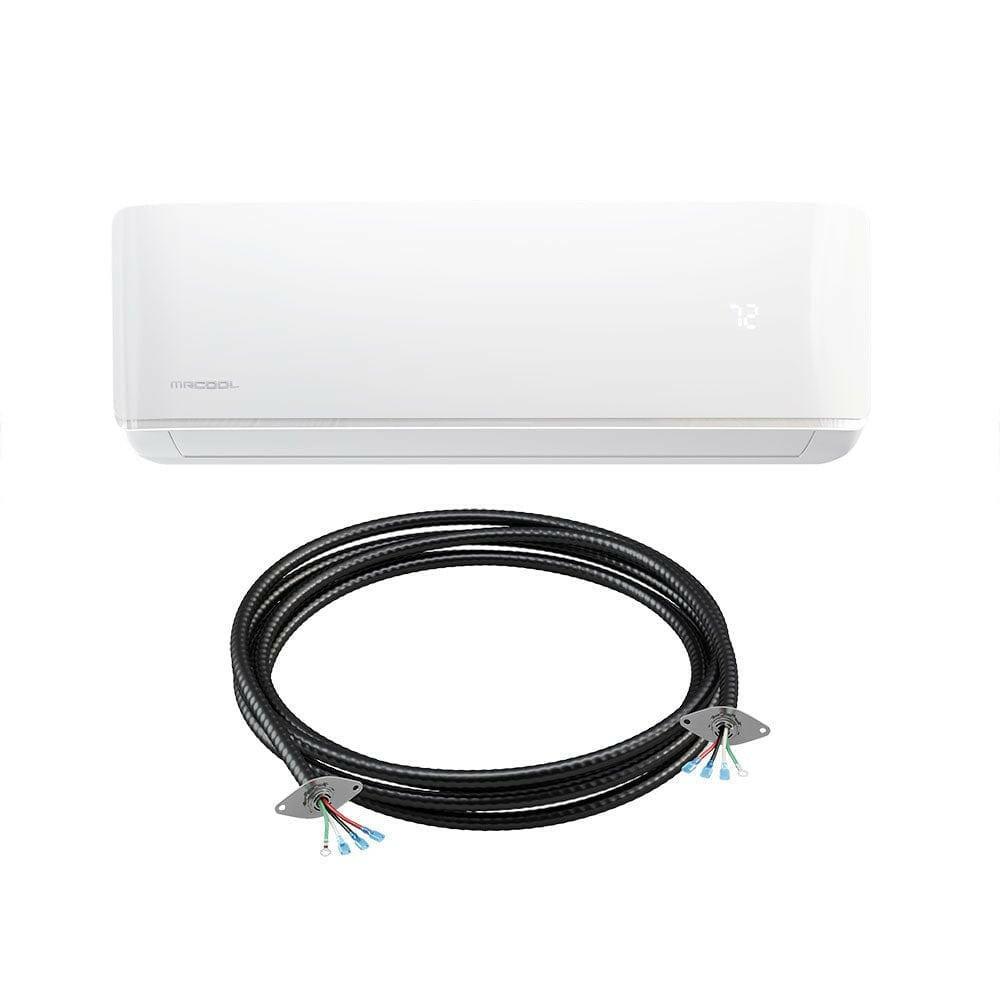

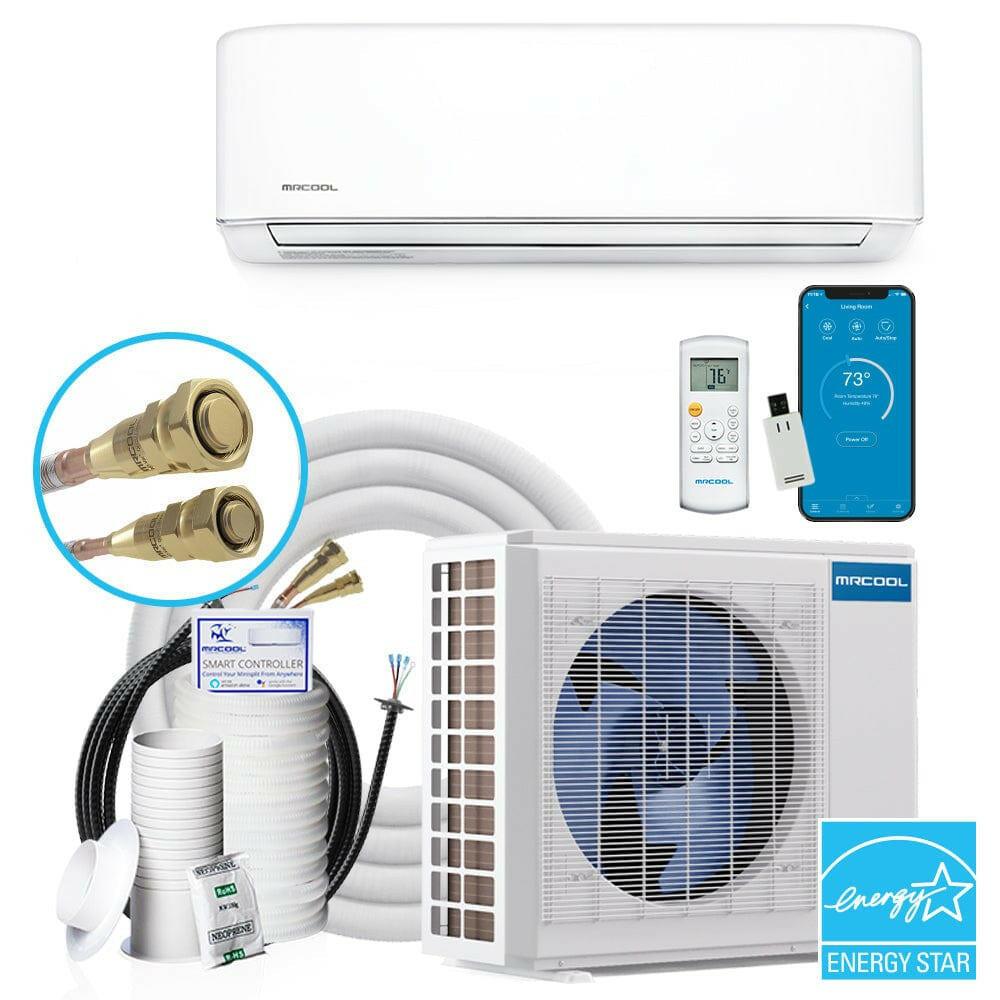

This powerful single-zone system has the capability of heating and cooling an area up to 1,500 sq. ft. It comes complete with a 36K condenser, 36K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.

This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18 SEER efficiency rating. All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MRCOOL Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation.

This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. MRCOOL offers a limited lifetime compressor warranty on this system.

Key Features

Up to 18 SEER

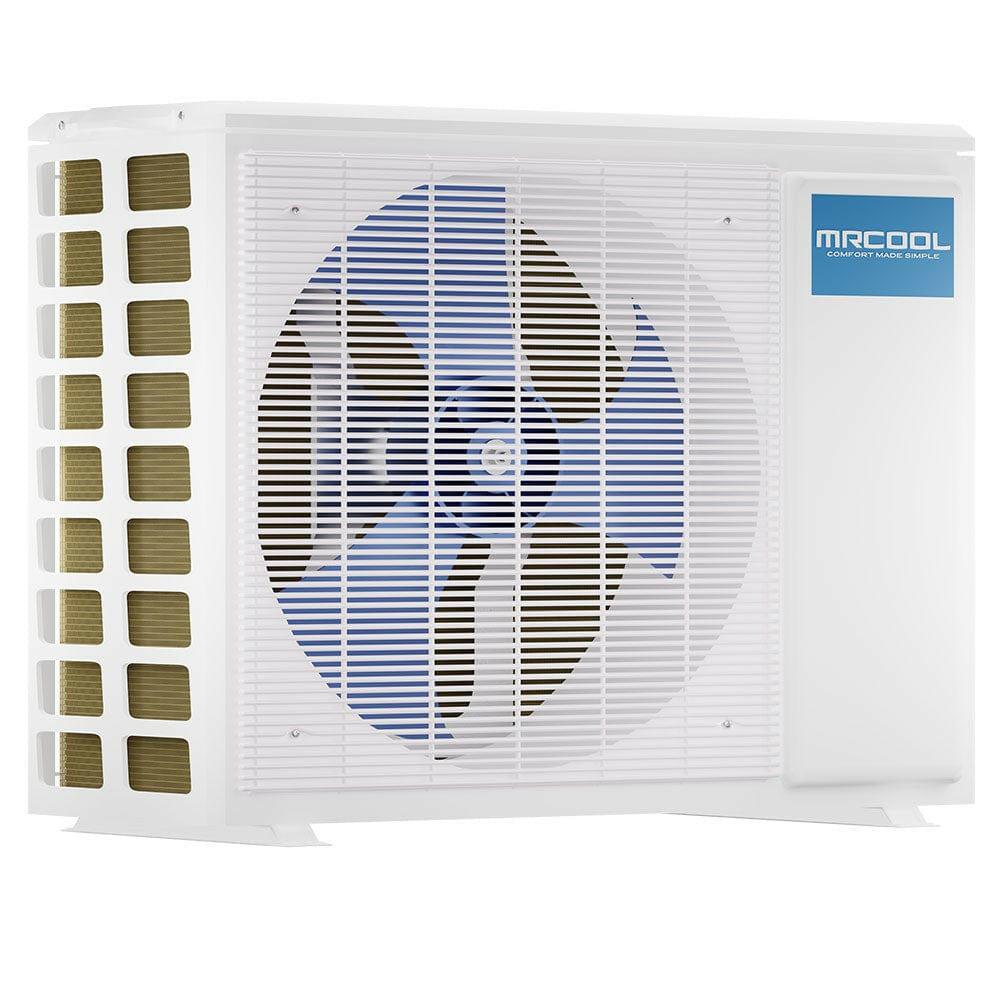

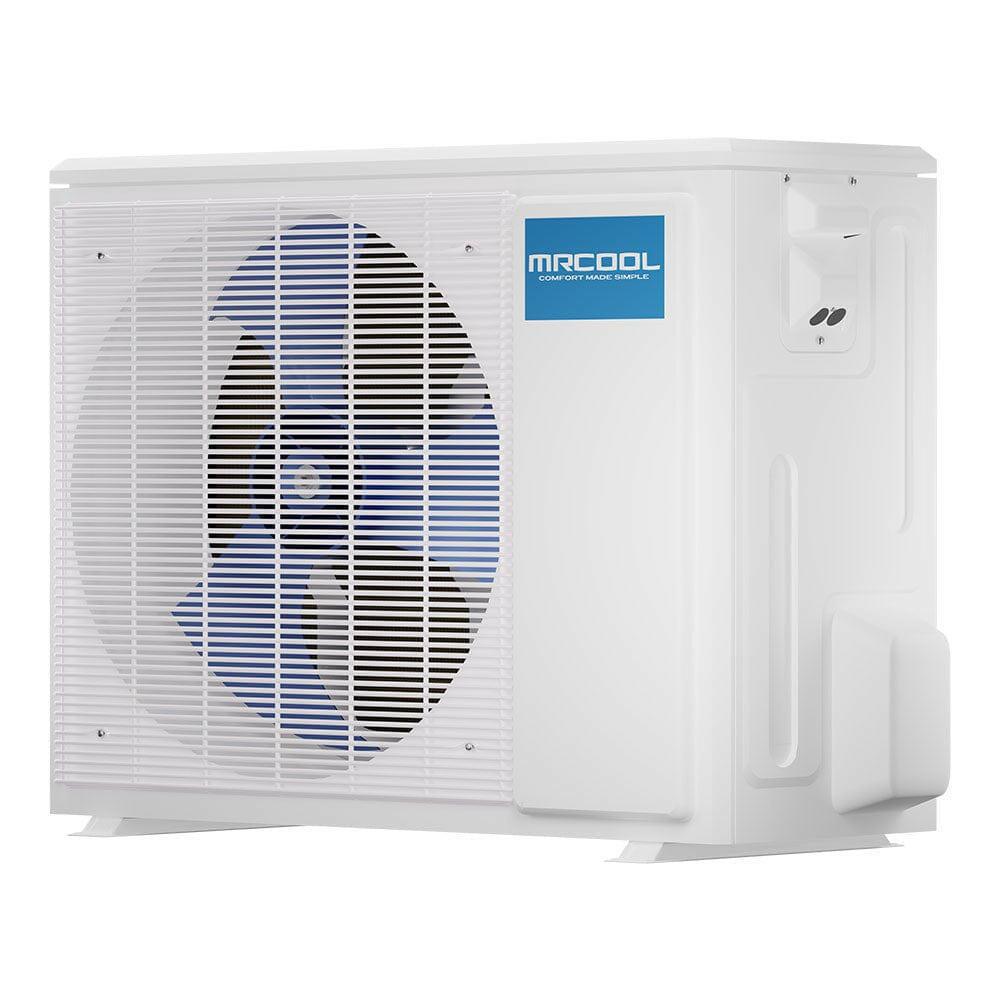

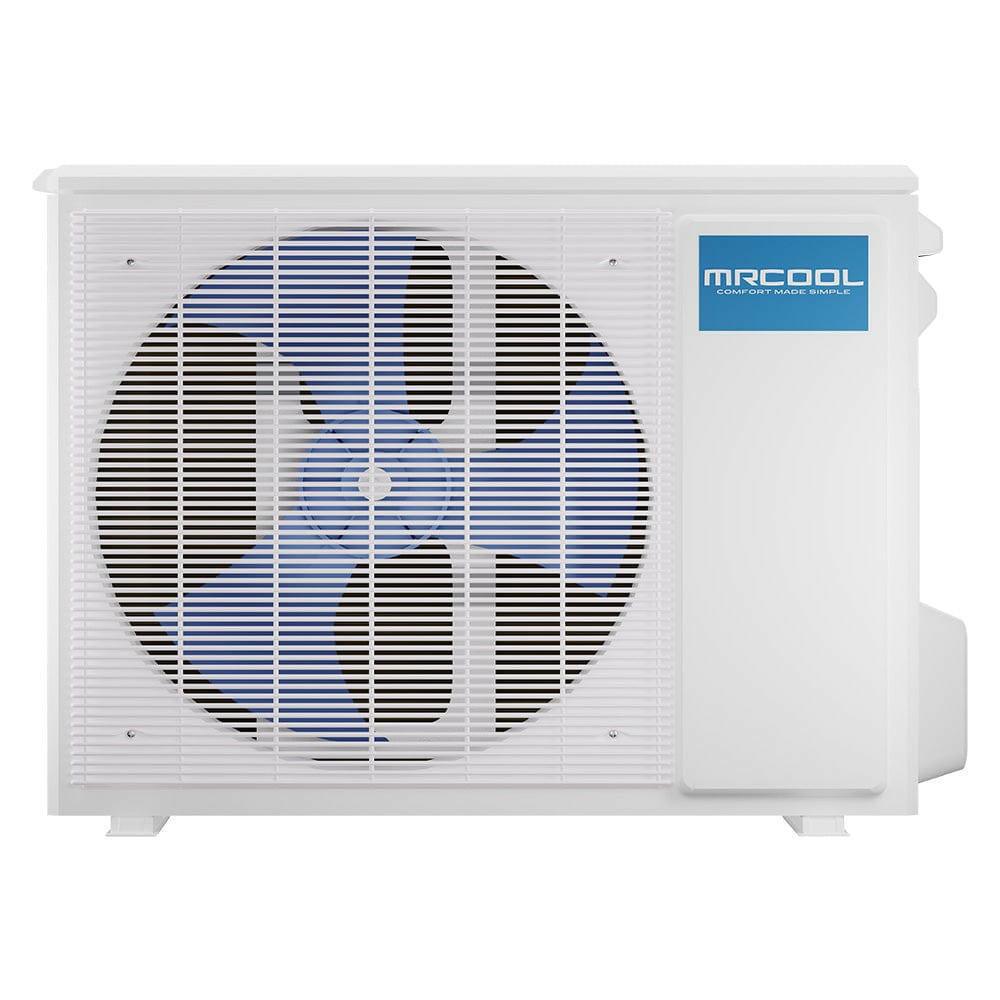

Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion

Variable-speed DC inverter compressor technology cuts operating costs

R-410A environmentally friendly refrigerant

Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

Condenser Dimensions	37.24"W x 16.14"D x 31.89"H
Condenser Weight	147.27 lbs
Air Handler Dimensions	49.57"W x 11.10"D x 14.25"H
Air Handler Weight	47.84 lbs
SEER	18
EER	8.7
COP 47	2.81
HSPF	hspf4/hspf5 : 12/9
CFM	673.53/502.94/367.65
Tonnage	3
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	35 A
Min Circuit Ampacity	28 A
Color	White
Rate Load	0.50 A
Max Coverage Area	Up to 1,500 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	111.1 oz
Decibel Rating	52/45/34
Decibel Rating Low	34 dBA
Decibel Rating High	52 dBA
Oscillation	4-W
Inverter	Yes
Min Ambient Cool	5F - 122F
Min Ambient Heat	5F - 75F
Line Set Length	25ft
Max Lineset Length	98.42 ft
Liquid Line Size	3/8 in
Suction Line Size	5/8 in
Compressor Motor Type	Rotary
Condenser Fan Motor RPM	950/250
Blower Motor RPM	1200/950/750
Auxiliary Heater Available	No
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	UL Listed Energy Star AHRI
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts
Restricted States	GU;PR;VI
