MRCOOL DIY Mini Split - 27,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-327HP090909
MRCOOL DIY Mini Split - 27,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-327HP090909
This 4th Generation MRCOOL Mini Split includes a DIY 27,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handler, and three Remotes.
The best part about all of this is that you can install it yourself!
See Features Below:

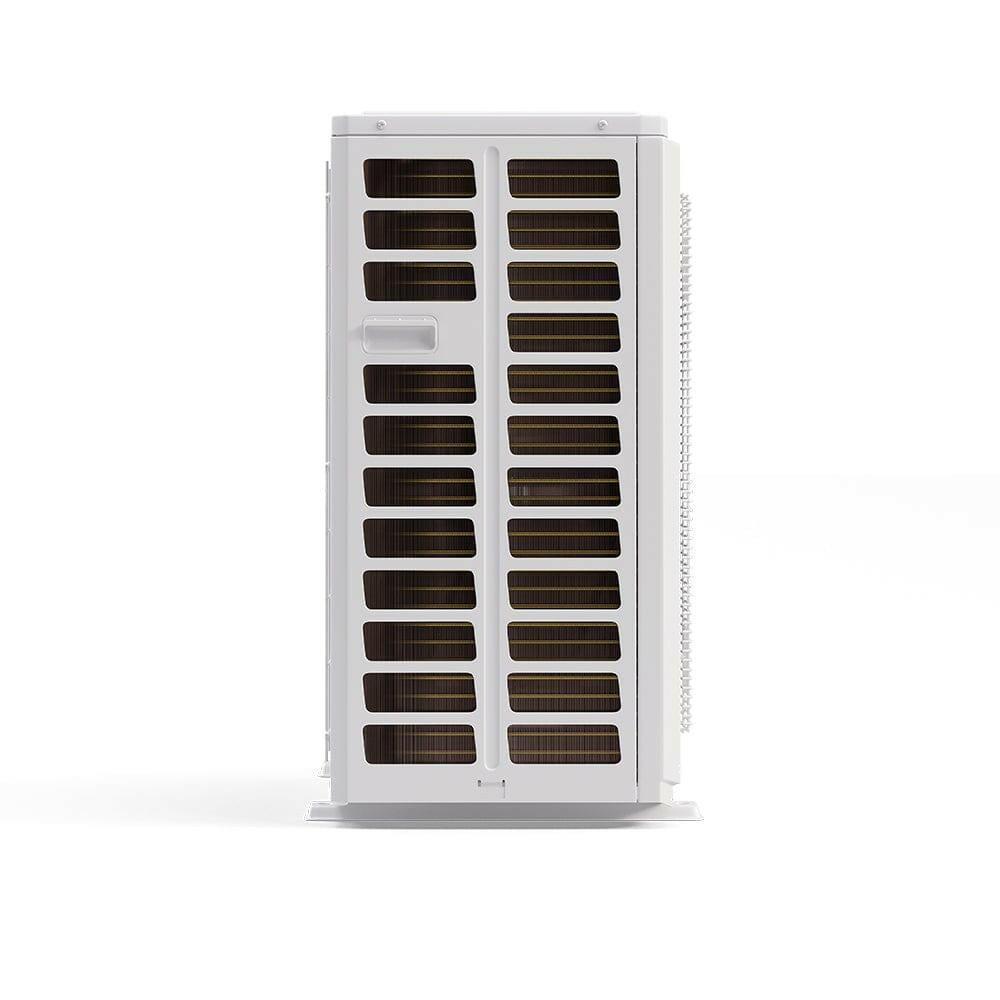

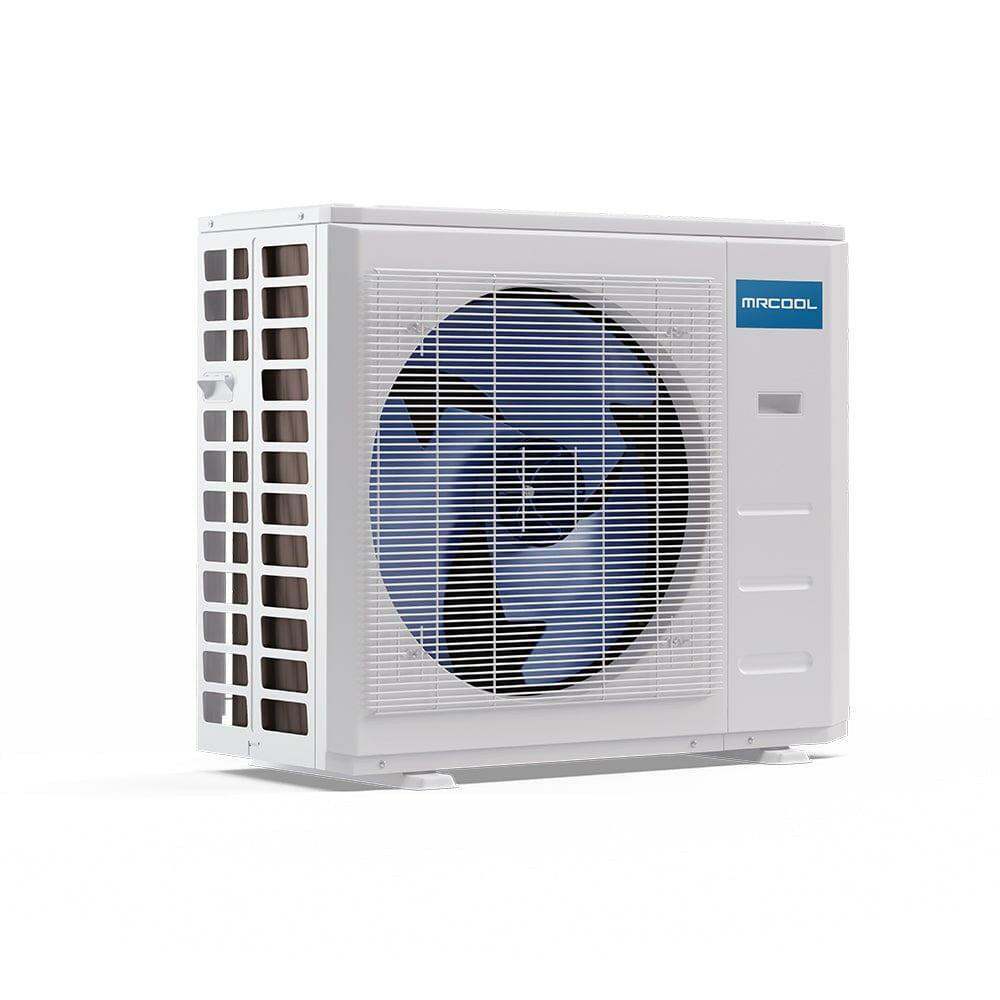

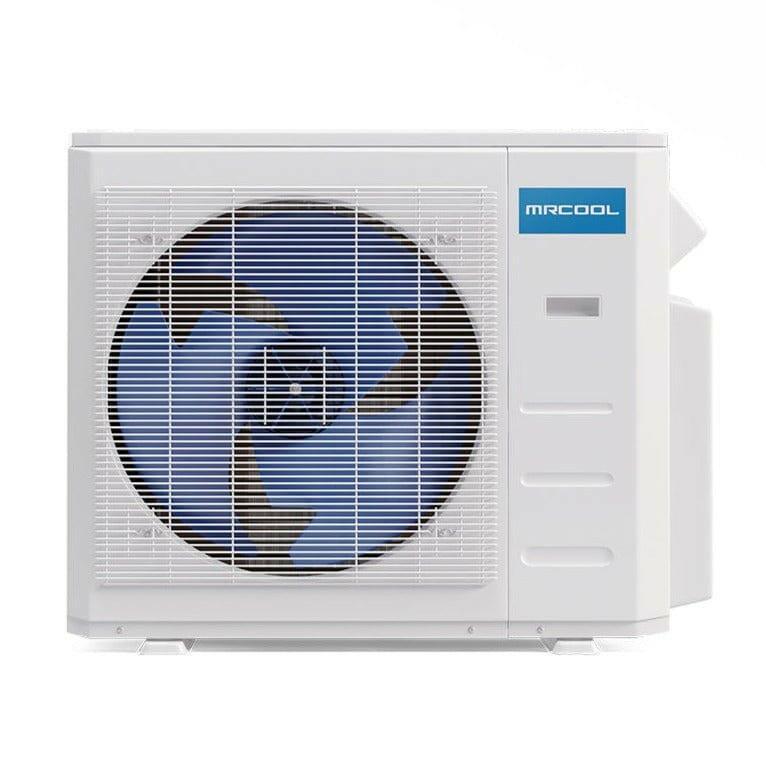

Condenser:
➯ Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
➯ Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
➯ Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 3:
➯ Large Coverage Area. Handler covers an area up to 375 sq. ft.
➯ Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
➯ Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
➯ Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Specifications
Condenser | |
---|---|
Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
Cooling Capacity | 27,000 BTU |
Heating Capacity | 27,000 BTU |
Zone Capacity | 3 |
Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
SEER | 21 |
EER | 12 |
Voltage | Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase) |
Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU | |
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Mount Type | Wall |
Cooling Capacity | 9,000 BTU |
Heating Capacity | 9,000 BTU |
Registered Warranty | 5 Years Parts |
Modes | Auto - auto selects from Cool, Heat or Fan-Only |
Dry - dehumidify | |
Cool | |
Heat | |
Fan Only | |
Quiet | |
Sleep |
Package Includes
➯ MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, DIY-MULTI3-27HP230C
➯ MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x3)
This package does not include linesets, don't forgot to scroll up and add them!
Product Manual
Delivery
Handling Time: 1-3 business days (Monday - Friday) for our team to prepare and fulfill your order from the warehouse.
Transit Time: 5-7 business days (Monday - Friday) after your order ships.
Once your order ships, you will receive an email with tracking information.
Please note that tracking details may take 24-48 hours to update on the carrier's website. Track your order here. View our full shipping policy here.
