MRCOOL

MRCOOL DIY Mini Split - 42,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM436HPW02C84

MRCOOL DIY Mini Split - 42,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM436HPW02C84

Regular price $5,071.00 USD
Regular price $5,071.00 USD Sale price $5,071.00 USD
Sale Sold out
Shipping calculated at checkout.

MRCOOL: Innovative Heating and Air Solutions for Your Family at ShopHubDepot

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat four different rooms. You'll be sent: DIY 36,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, two 12,000 BTU Wall Mounted Air Handler, four Remotes, and four 25 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

See Features Below:

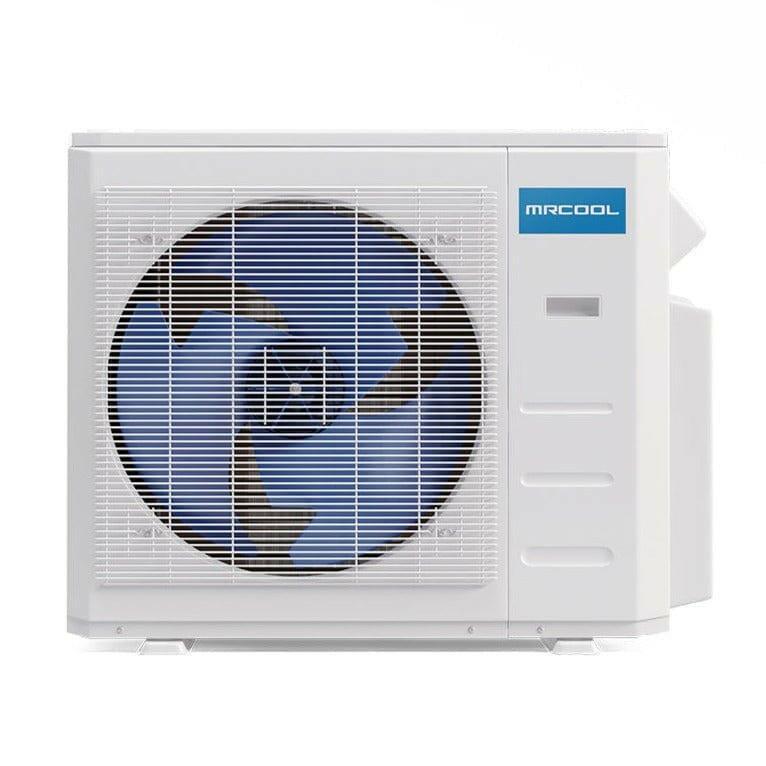

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.

  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.

  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.

    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.

    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

        Line Set 25 ft., Quantity 4

        • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together

          Why Purchase MRCOOL from ShopHubDepot?

          As an authorized dealer of MRCOOL, we guarantee the authenticity and excellence of every MRCOOL Ductless Mini Split, Universal Series, Geo Cool, Inverter, Central Split System, HVAC, and other cooling and heating products we offer. MRCOOL provides innovative heating and air solutions for your family. All our products are brand new, giving you confidence with every purchase. Our expert customer service team is dedicated to addressing any questions or concerns, ensuring a seamless and satisfying shopping experience.

          Choosing ShopHubDepot for your MRCOOL Ductless Mini Split, Universal Series, Geo Cool, Inverter, Central Split System, HVAC, and other cooling and heating products means opting for top-notch quality. From pre-sale inquiries to post-sale support, we are here to assist you every step of the way. Enhance your indoor climate with confidence—shop with ShopHubDepot today!

            Specifications
            Condenser Specifications
            Product Dimensions 37.24"W x 16.14"D   x 31.89"H
            Cooling Capacity 36,000   BTU
            Heating Capacity 36,000   BTU
            Zone Capacity 4
            Min Ambient Cool 5F   ~ 122F
            Min Ambient Heat -13F ~ 75.2F
            SEER 21.5
            EER 10.5
            Voltage Requires a minimum of   208V-230V/60HZ/27-45A (please check your home meets this electrical   requirement prior to purchase)
            Registered Warranty 7   Years Replacement on Condenser, 5 Years Parts
            Air Handler 9K BTU
            Product Dimensions 31.57"W x 7.44"D   x 11.69"H
            Mount Type Wall
            Cooling Capacity 9,000 BTU
            Heating Capacity 9,000 BTU
            Registered Warranty 5   Years Parts
            Modes Auto - auto selects from   Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep
            Air Handler 12K BTU
            Product Dimensions 31.57"W x 7.44"D   x 11.69"H
            Mount Type Wall
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from   Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep
            Line Set
            Length 25 Feet
            Liquid Line Size 1/4"
            Suction Line Size 1/2"

            Package Includes
            • MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C

            • MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)

            • MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25 (x2)

            • MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x4)

            If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 36K BTU rating of the Condenser.
