MRCOOL Universal 4-5 Ton 18 SEER Central Heat Pump Split System with 25 ft. Lineset, MDU18048060-25

MRCOOL Universal 4-5 Ton 18 SEER Central Heat Pump Split System with 25 ft. Lineset, MDU18048060-25

Regular price $4,705.95 USD
Regular price $4,901.00 USD Sale price $4,705.95 USD
Sale Sold out
Shipping calculated at checkout.

The 4 to 5 Ton 18 SEER MrCool Universal Central Heat Pump Split System is one of the most high-performing, versatile, and simple heating and cooling products available in the industry today.


 This is a central heat pump that can cool better than most air conditioners, heat better than virtually any other heat pump, compete with traditional furnaces in cold weather, and reduce energy consumption thanks to its sophisticated internal controls.

It even comes with new technology that makes HVAC installation faster and simpler than a traditional heat pump. Basically, the MRCOOL Universal has it all.

Key Features:



➯Condenser



• The 4 to 5 Ton 18 SEER MrCool Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end.



• Superior Heat Pump. 100% Heating Capacity to 14°F, 100% Cooling Capacity to 109.4°F



• Ultra Quiet. Internal Fan Blade Creates Low Noise



• Environmentally Friendly. Factory Charged and environmentally friendly R410



    ➯Air Handler



     • This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance.



     • Anti Shock. Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker



     • Easy to clean. Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration



     • Multi-Position. Upflow or Horizontal

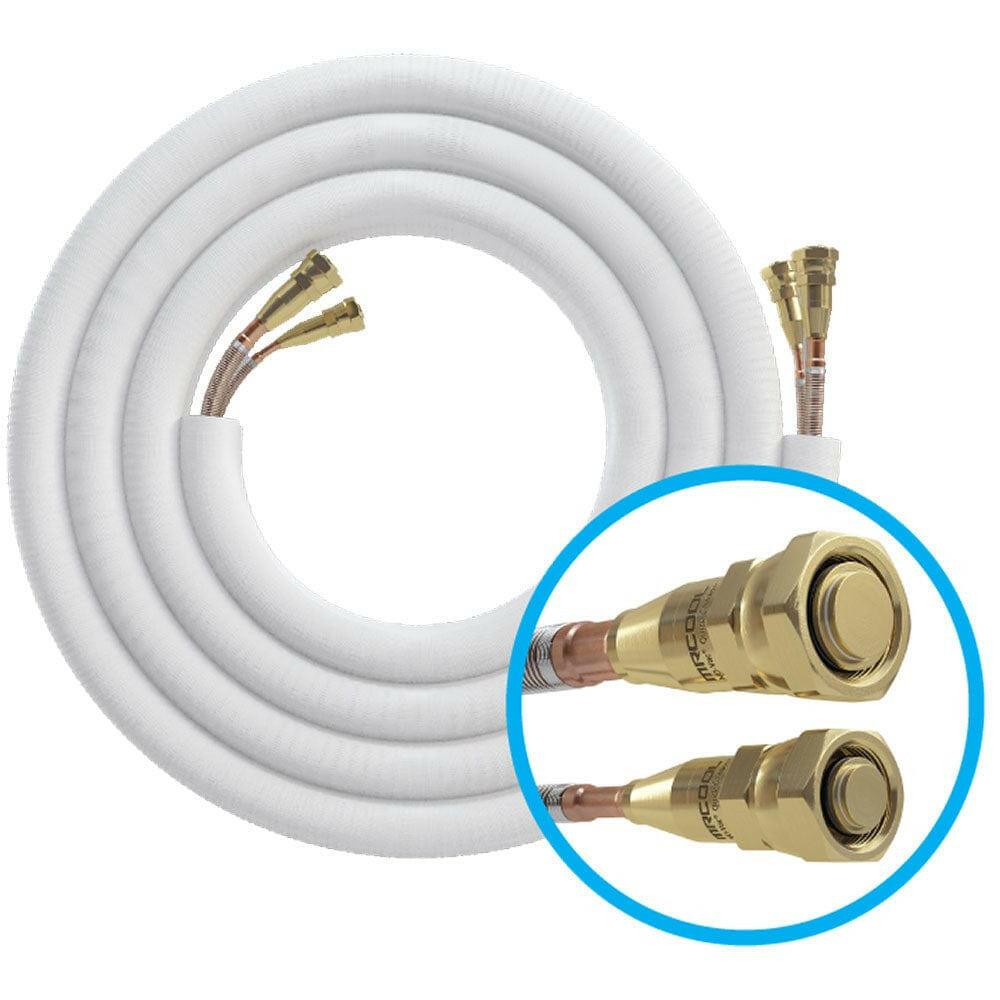

    ➯ Line Set 25 ft.



    • Kink Resistant. Kink Resistant for Easier Bending During Installation



    • Pre-Charged. Pre-Charged R-410A to 1.94 oz for 100% Accuracy



    • UV Protective. Strong 3/4" Gator-Flextra UV Protective Insulation Sleeve



    • Easy to Use. Simple to Use Screw-on Quick Connect Valves



    Specifications
    Condenser
    Product Dimensions 39 3/8"W x 14 1/2"D x 53   3/4"H
    Cooling Capacity 54,000 BTU
    Heating Capacity 54,000 BTU
    Compressor Inverter
    Min Ambient Cool 5°F   - 129.2°F
    Min Ambient Heat -22°F   - 75.2°F
    Line Set Connection Quick   Connect, Pre-Flared or Sweat
    SEER Up to 18
    Warranty 10 Year Registered Limited Warranty
    5 Years Parts
    Electrical Requirements Requires a minimum of 208V-230V/60HZ/35A-45A   (please check your home meets this electrical requirement prior to purchase)
    Air Handler
    Product Dimensions 21 1/4"W x 24 3/4"D   x 57"H
    Installation Upflow or Horizontal
    Cooling Capacity 54,000 BTU
    Heating Capacity 54,000 BTU
    Coverage Area Up to 2,500 square feet
    Warranty 10 Year Registered Limited Warranty
    Electrical Requirements Requires a minimum of 208V-230V/60HZ/8A-15A   (please check your home meets this electrical requirement prior to purchase)
    Line Set
    Length 25 Feet
    Liquid   Line Size 3/8"
    Suction   Line Size 3/4"



    System Includes

    • MRCOOL Universal Series Heat Pump Condenser 4-5 Ton, MDUO18048060



    • MRCOOL Universal High ESP 54,000 BTU Air Handler, MDUI18048060E

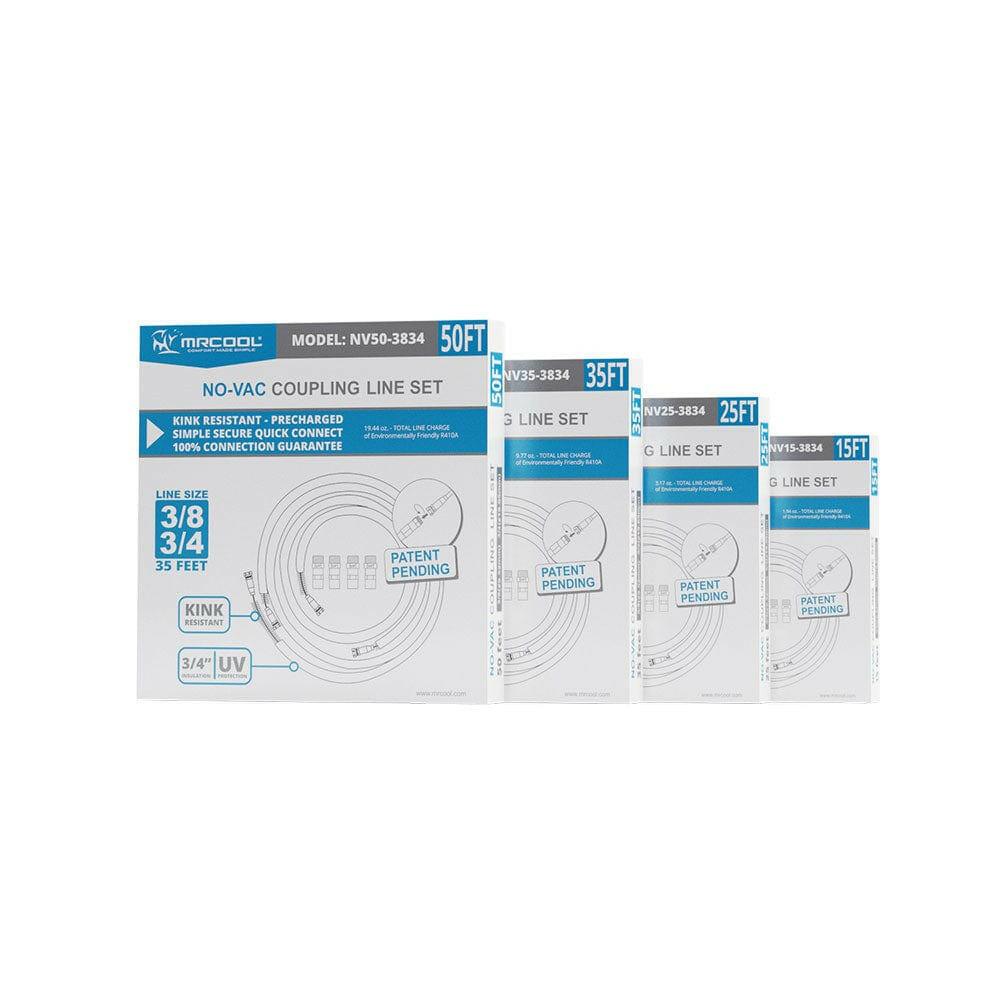

    • MRCOOL 25 ft. Pre-Charged 3/8" x 3/4" No-Vac Quick Connect Line Set, NV25-3834


    Product Manual

    ➯ Condenser

    ➯ Air Handler
