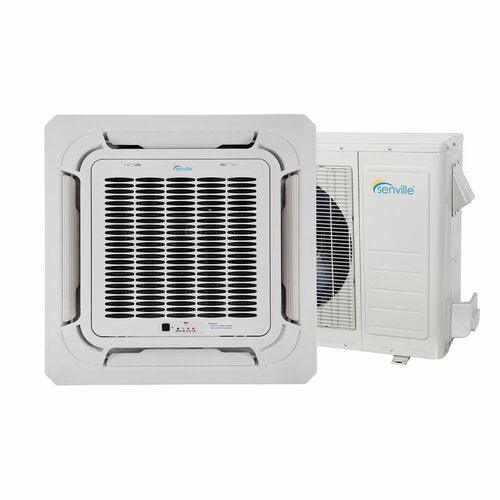

The 9000 BTU Ceiling Cassette Air Conditioner with Heat Pump by Senville is a top-of-the-line ductless system that offers advanced features and high efficiency.

 With SEER ratings of up to 20.5, this unit provides powerful cooling and heating while maintaining energy efficiency. The ultra-quiet operation ensures a comfortable environment without any disruptive noise.

See Features Below:

• 20.5 SEER (CEE Tier 3)



• With Heat Pump (Up to -30C / -22F)



• Energy Star Certified



• Whisper Technology (Ultra Quiet)



• Refrigerant Leak Detection



• Inverter Technology



• Silver Ion Filter (Anti-Microbial)



• Vertical Swing Function



• Built-In De-humidification Function

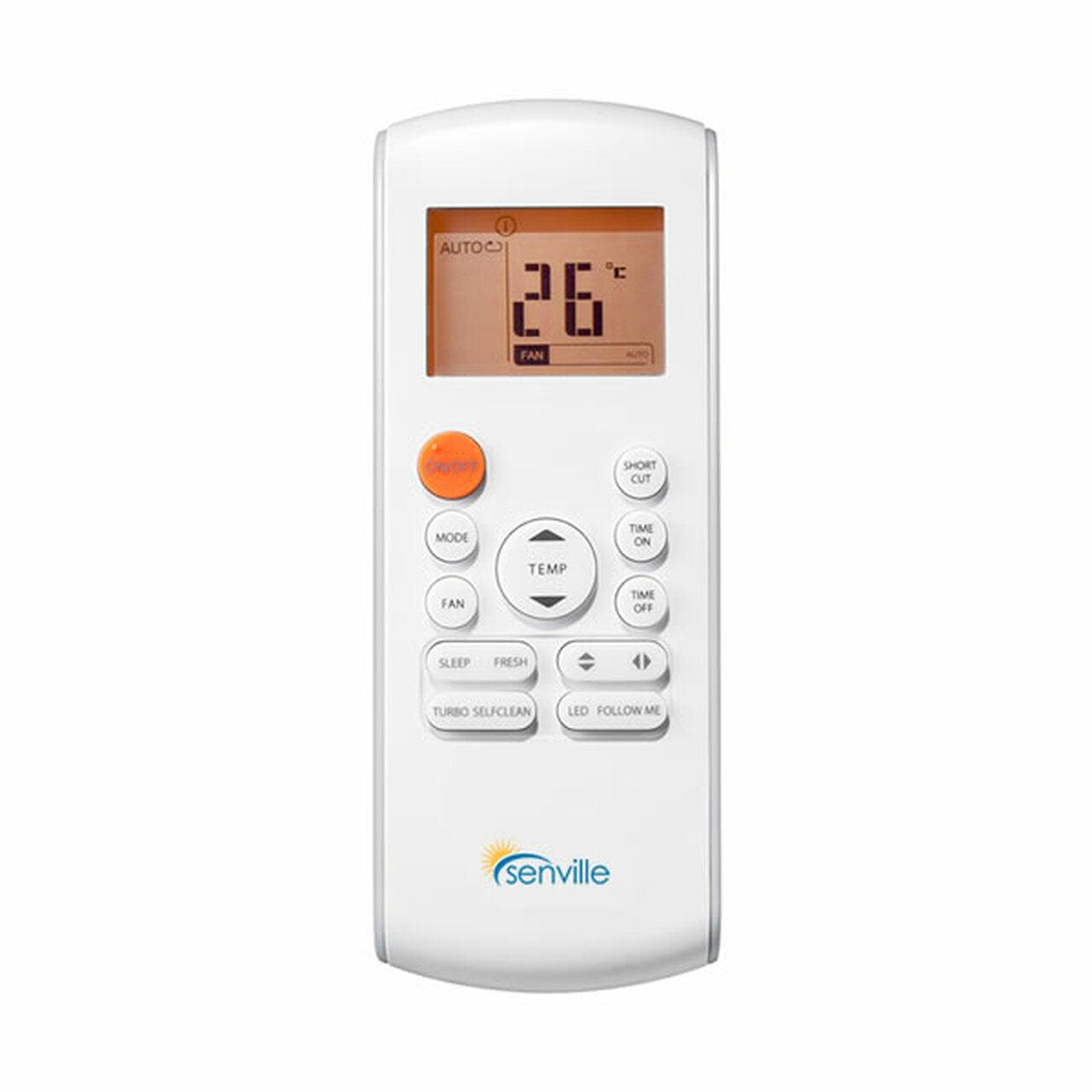

• Follow Me Function (Remote with Built-In Thermostat)



• Low Ambient Cooling (Up to -30C / -22F)



• Self-Cleaning Mode



• PTC Heat Belt and Pan



• Bucket Free Outdoor Design



• Self Diagnosis System



• ENERGY STAR Certified



• ETL Certified



• AHRI Certified (View Certificate)



Energy Star certified, this air conditioner is designed to save you up to 40% on your energy costs annually, making it an excellent choice for both residential and commercial settings. The Ultra Inverter Technology allows for heating and cooling even in extreme temperatures as low as -22°F, with up to 75% efficiency, ensuring consistent comfort throughout the year.



Equipped with diagnostics and leak detection systems, the Senville Aura Series ensures long-lasting performance and easy maintenance. The included installation kit and accessories make setup a breeze, further adding to the convenience of this unit.



Backed by a comprehensive 10-year warranty on the compressor and 5-year warranty on other parts, you can trust in the quality and durability of this air conditioner. With key features such as built-in de-humidification, self-cleaning mode, and self-diagnosis system, the Senville Aura offers a premium cooling and heating solution for spaces up to 400 square feet.



If you are looking for a reliable, efficient, and innovative air conditioning solution, the 9000 BTU Ceiling Cassette Air Conditioner by Senville is the perfect choice for your comfort needs. Enjoy year-round climate control with this high-end system that is designed to exceed your expectations.

Model   Number SENA-09HF-ICQ
Style Ceiling Cassette Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz) 208/230V, 1Ph, 60Hz
Voltage Range 187-253
SEER 20.5
EER 13
Cooling (Range) 2850~11100
Input (W) 692
Rated current A 3.17
Heating (Range) 2270~12500
Input (W) 1000
Rated Current (A) 4.58
HSPF4 10.8
HSPF5 9
COP W/W 2.93
Minimum Circuit Ampacity (A) 15
Max. Fuse (A) 15
Indoor Dimensions (WxDxH)   (in.) 22.44x22.44x10.24
Indoor Air Flow (H/M/L) CFM 352.94/305.88/270.59
Indoor Noise Level (H/M/L) dB 39.5/36/32.5

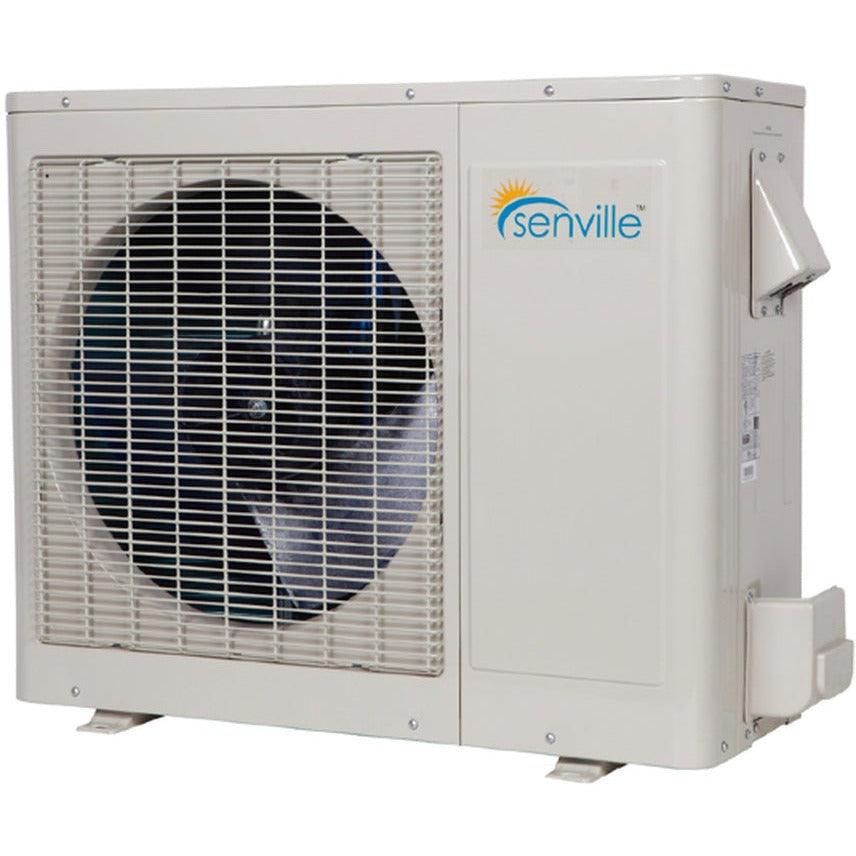

Outdoor Dimensions (WxDxH)   (in.) 31.69x12.99x21.81
Outdoor Noise Level dB 54.5
Outdoor Air flow (Max)   CFM 1323.5
Refrigerant Type R410A / 41.62 Oz
Refrigerant Pre-charge 25 Ft.
Thermostat Type Remote Control
Connection Wiring 14*4 AWG
Warranty 10 Years Compressor / 5 Years Parts
Application Area (8Ft   Ceilings) 400Sqft.
Warning California Proposition 65



Cassette Sizing and Clearance:
