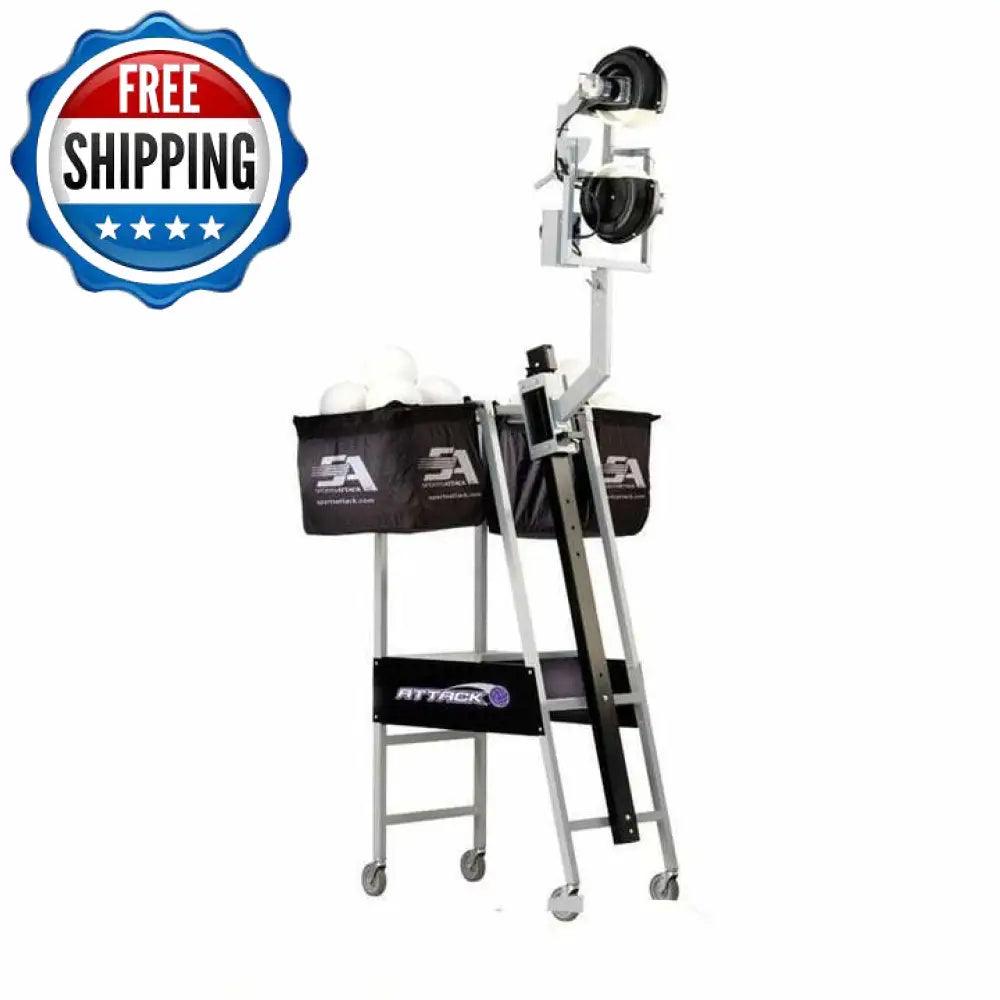

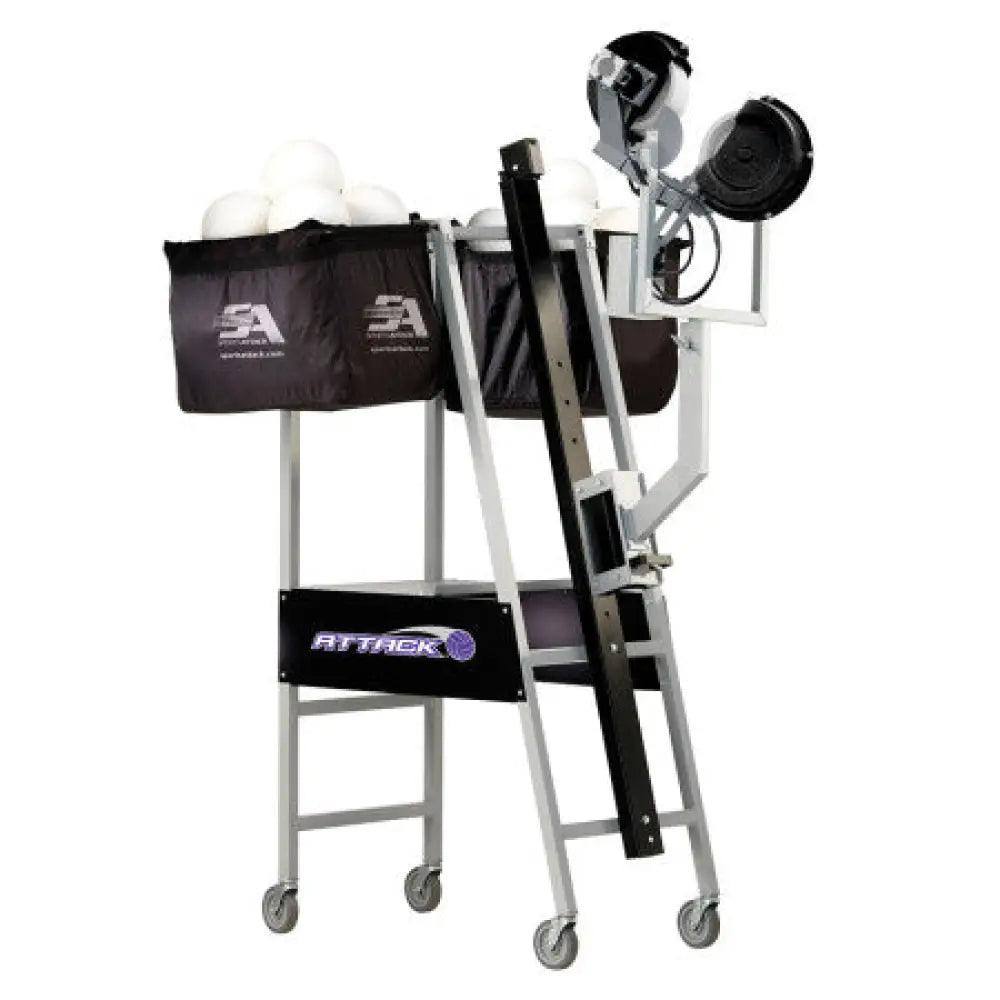

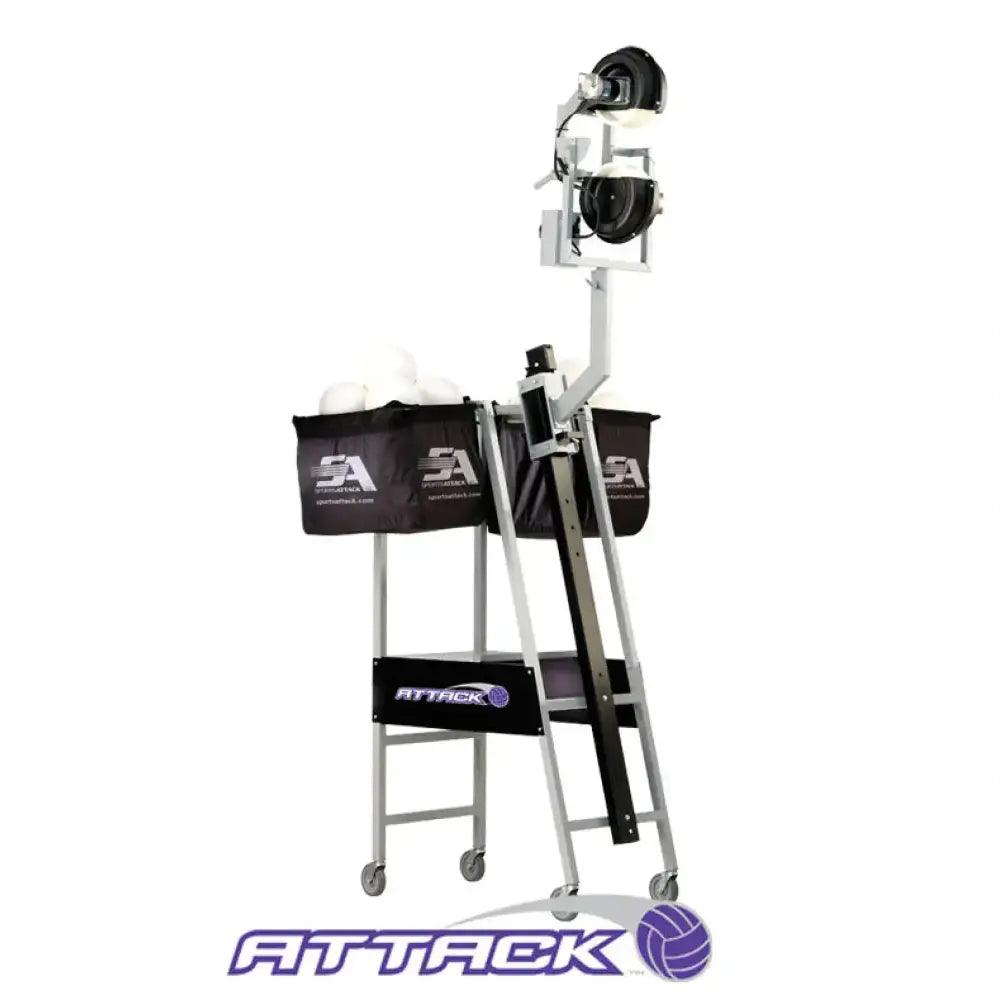

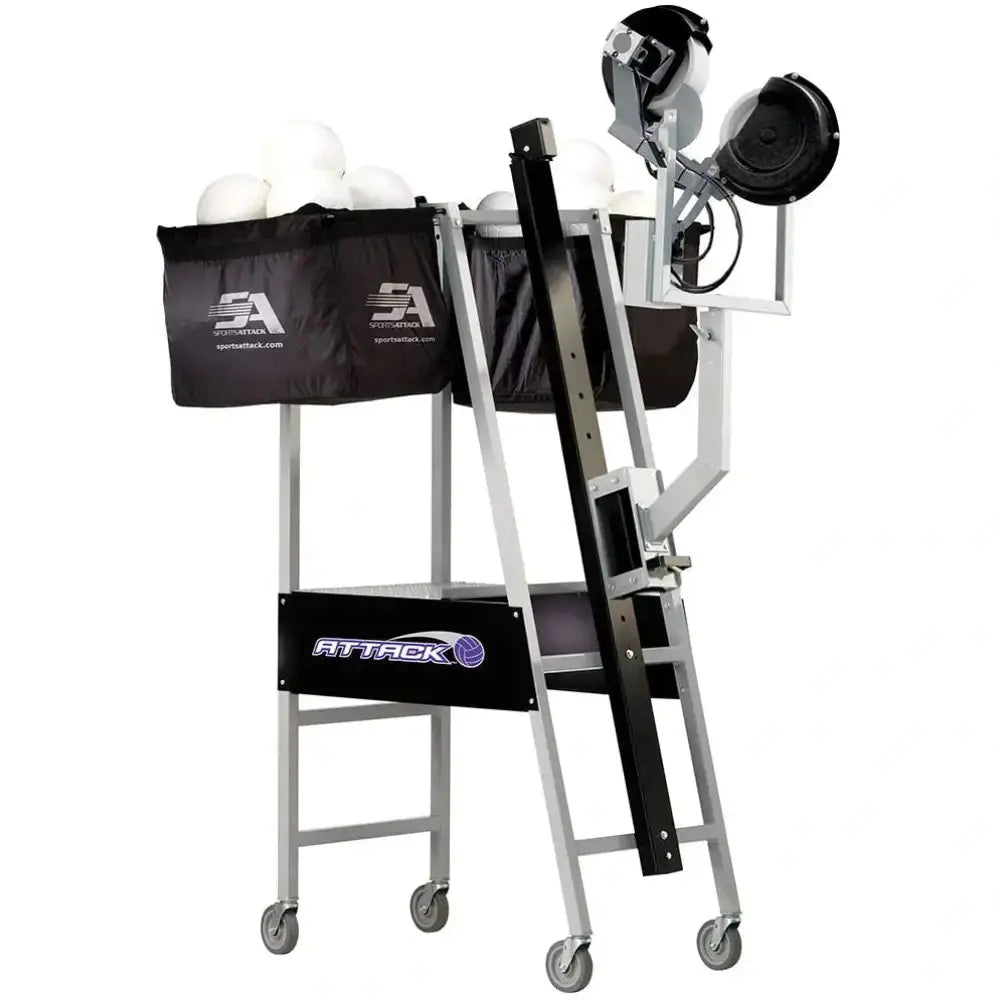

SportsAttack The Attack Volleyball Pitching Machine(90V - 3181-4770-1)


The Attack volleyball machine, designed for the men’s game, will deliver thousands of reps in daily practice of serve receiving, digging and spiking. With two extra-wide throwing wheels, accuracy and repeatability are assured in every drill, eliminating time wasting errant hits.

Additional Information

Weight 220 lbs
Dimensions 34 × 33 × 80 in
Shipping-weight 200 lbs


Unique Volleyball Machine Features

  • Serving: With a variable spins, the Attack will throw both sharp topspin and breaking floaters to simulate match situations and is easily rolled along the serving baseline, changing the angle of serves. This unit, designed for the speed and height of the men’s game, will provide a realistic serve release point and can deliver a jump serve at international level speeds, up to 80 MPH. The locating pins on the shaft will allow you to instantly position the throwing head to men’s serving height.
  • Spiking: The Attack delivers the ball at realistic angles from over the net at top speeds to make actual game conditions a part of every digging drill.
  • Setting: Providing rapid reps at varying intervals, the Attack will meet the requirements of all setting drills. Accurate and consistent soft sets with no spin are provided at any angle and height. This machine can be set to release the ball from a realistic setting height, not from floor level like some competitive units. The locating pins on the shaft will allow you to instantly position the throwing head down to the setting position.
  • Ball wear is extremely limited due to the two 4″ wide, soft white polyurethane ball gripping surfaces and the contoured shape of the ball throwing wheels that uniformly distribute the contact forces, eliminating the high wear contact points.
  • Horizontal throwing head movement allows the coach to point ball delivery in any direction, working straight on, in the seams or to an individual’s weak side to really extend any player’s range.
  • Vertical movement coupled with the horizontal movement, means the coach can instantly throw the ball to any point on the court, creating game situations & challenging the players to perform in progressively more difficult circumstances.
  • Portability: Locking casters provide instant mobility on the court and stability during use.
  • Storage: The Attack will fit through any standard door for safe storage. The throwing head can also be removed, allowing storage of the frame in the open gym. A machine cover is available separately and is used to protect and secure the machine during storage.

The Attack can be safely operated by any assistant coach, player, student or parent. This frees the coach to be by the receiving players to teach proper mechanics effectively. No more yelling across the court. It also allows the coach to improve the quality of standard drills and to create new machine drills for every phase of the game.

Thousands of college, high school, club and international men’s teams rely on the Attack machine to deliver thousands of reps in daily practice of jump serve receiving, digging, and spiking.

Exceptional Training Machine Quality

  • The Attack platform has a 16-gauge diamond plate, non-slip surface for sure-footing and safety during use.
  • The frame of the Attack is powder-coated, rust-resistant steel tubing for extreme durability.
  • The extra-wide base of the Attack machine assures real stability. As the throwing head is raised, it moves towards center of gravity, further insuring stability.

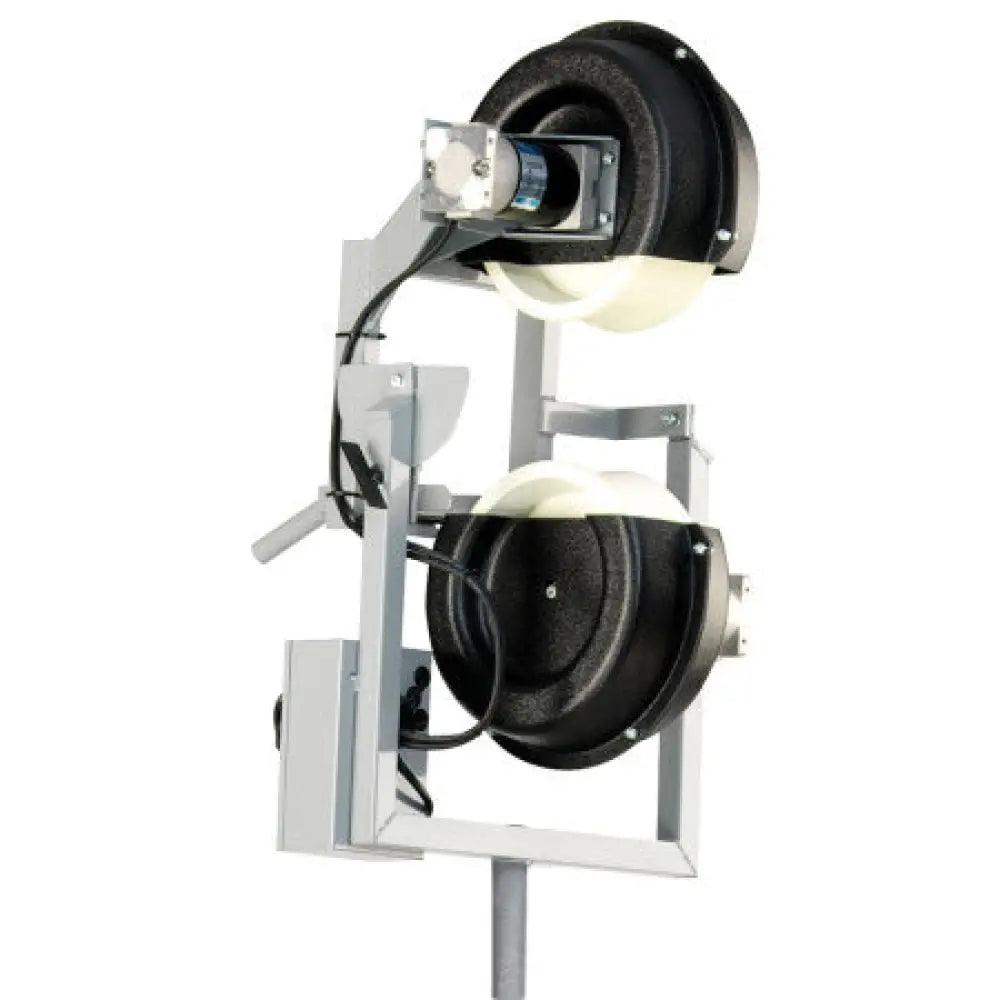

  • Two powerful variable speed motors directly drive indestructible 4″ wide ball throwing wheels. Rapid recovery provides rapid repetition, no waiting for air-powered launch system to recover.
TOTAL ATTACK ATTACK ATTACK II SKILL ATTACK
Ball Release Point Range 6′ 3″ to 9′ 6″ 6′ to 9′-3″ 5′-6″ to 8′-6″ 5′-3″
New Serving
Speeds
90+ MPH 80+ MPH 70 MPH 40 MPH
Spiking Over Men’s and Women’s net Over men’s and women’s net Over women’s net From same side of net
Setting Yes Yes Yes Yes
Spin Top spins to floaters Top spins to floaters Top spins to floaters Top spins to floaters
Location Control Instant Instant Instant Instant
Portability Fits through standard doorway and into any standard size SUV or pick-up. Fits through standard doorway & into any standard size SUV or pickup Fits through standard doorway & into any standard size SUV or pickup Breaks down to fit in the trunk of any size car
Electrical
Requirements
110V and 220/240V
also available
110V and 220/240V
also available
110V and 220/240V
also available
110V and 220/240V
also available
New Throwing Wheel Size 10″ diameter, 4″ wide 10″ diameter, 4″ wide 10″ diameter, 4″ wide 5″
Dimensions 36″ W at widest point but configured to easily fit through a 3′ door. 86″-127″ H (depending on head position) 53″ deep with or without throwing head 24″ wide x 83″-124″ tall (depending on head position) 50″ deep (45″ w/o throwing head) 24″ wide x 79″-112″ tall(depending on head position) 47″ deep (42″ w/o throwing head) 36″ wide x 72″ tall 40″ deep
Platform
Height
37.5″ 36″ 24″ n/a

*PLEASE ALLOW SPORTS ATTACK PRODUCTS 12-16 BUSINESS DAYS TO SHIP
*Machine includes 1 ball bag and frame.
*Machine shipped in 2 boxes via UPS Freight.
